E1840P Sloppy Stage 2 Hydraulic Roller Camshaft for Cadillac Chevrolet GM LS Engines – .585/.585 Lift

Not sure if this fits?

Send us your Year, Make, Model and Engine size before ordering.

• 2004Buick Rainier 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2002-2004Cadillac Escalade 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2002-2004Chevrolet Avalanche 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007Chevrolet Express 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007Chevrolet Express 2500 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2005Chevrolet Express 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006Chevrolet Silverado 1500 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006Chevrolet Silverado 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2007Chevrolet Silverado 1500 Classic 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated
• 2000Chevrolet Silverado 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 1999-2000Chevrolet Silverado 2500 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2004Chevrolet SSR 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000Chevrolet Suburban 2500 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2004Chevrolet Tahoe 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2004Chevrolet Trailblazer EXT 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2004GMC Envoy XL 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2004GMC Envoy XUV 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007GMC Savana 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007GMC Savana 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006GMC Sierra 1500 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006GMC Sierra 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2007GMC Sierra 1500 Classic 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000GMC Sierra 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2004GMC Yukon 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2004GMC Yukon XL 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated

OEM Numbers

These OEM reference numbers are used for identification and fitment purposes.

⚠️IMPORTANT

Please double-check your vehicle’s year, engine type, and part number before purchasing.
If you're unsure, feel free to contact us for assistance.

Specification
*1. Camshaft Compatibility
for Chevy LS-Series Engine 1997-Up
Not for use with AFM/DOD
Camshaft RPM Range 2200 to 5400 RPM
Camshaft Intake Valve Lift .585"
Camshaft Exhaust Valve Lift .585"
Camshaft Advertised Intake Duration 283°
Camshaft Advertised Exhaust Duration 286°
Camshaft Intake Duration at .050" 228°
Camshaft Exhaust Duration at .050" 230°
Camshaft Lobe Separation 112°
Camshaft Intake Centerline 108°
Camshaft Cam Gear Attachment 3-Bolt

*2. Number of Springs Per Valve Single
Outside Diameter of Outer Spring (in) 1.290 in.
Spring Coil Bind Height (in) 1.140 in.
Damper Spring Included No
Spring Install Load 130lbs
Spring Install Height 1.800"
Spring Open Height 1.175"
Spring Open Load 318 lbs
Spring Rate (lbs/in) 313 lbs./in.
Inside Diameter of Outer Spring (in) 0.885 in.
Valve Spring Style Beehive

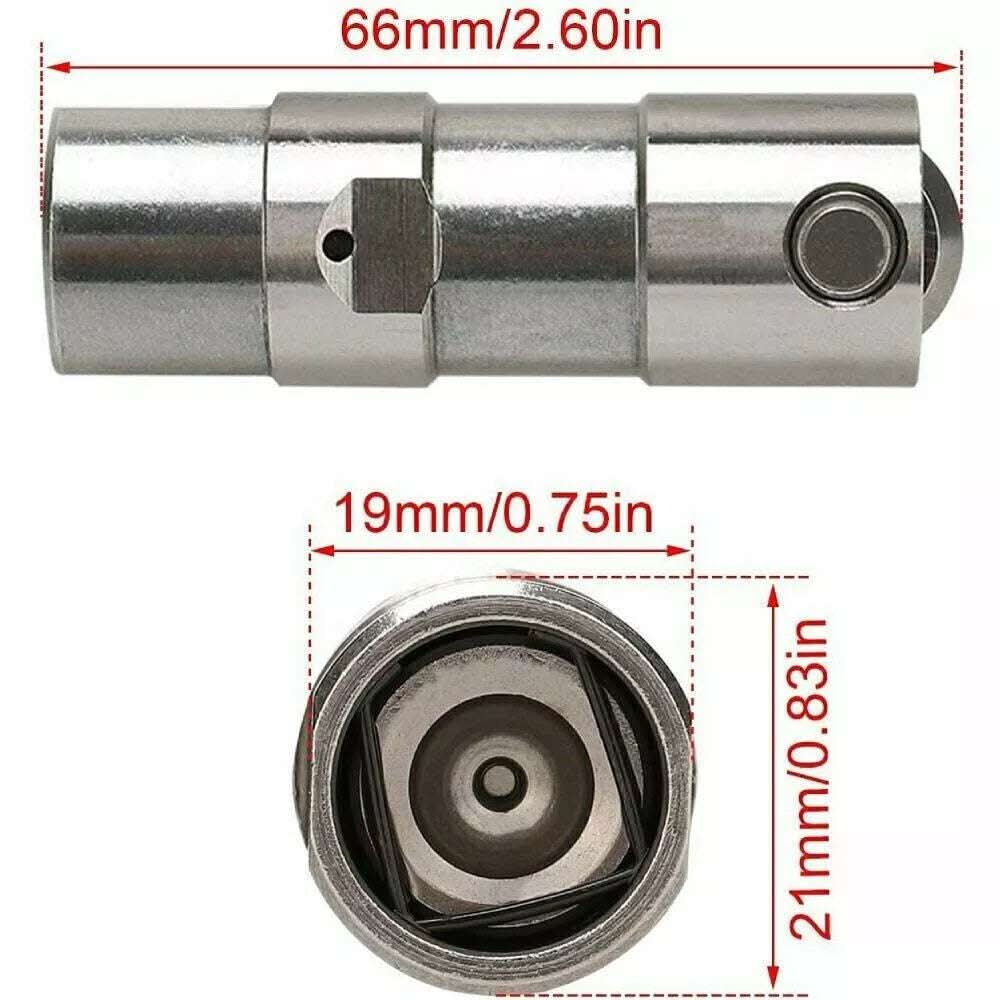

*3. Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.

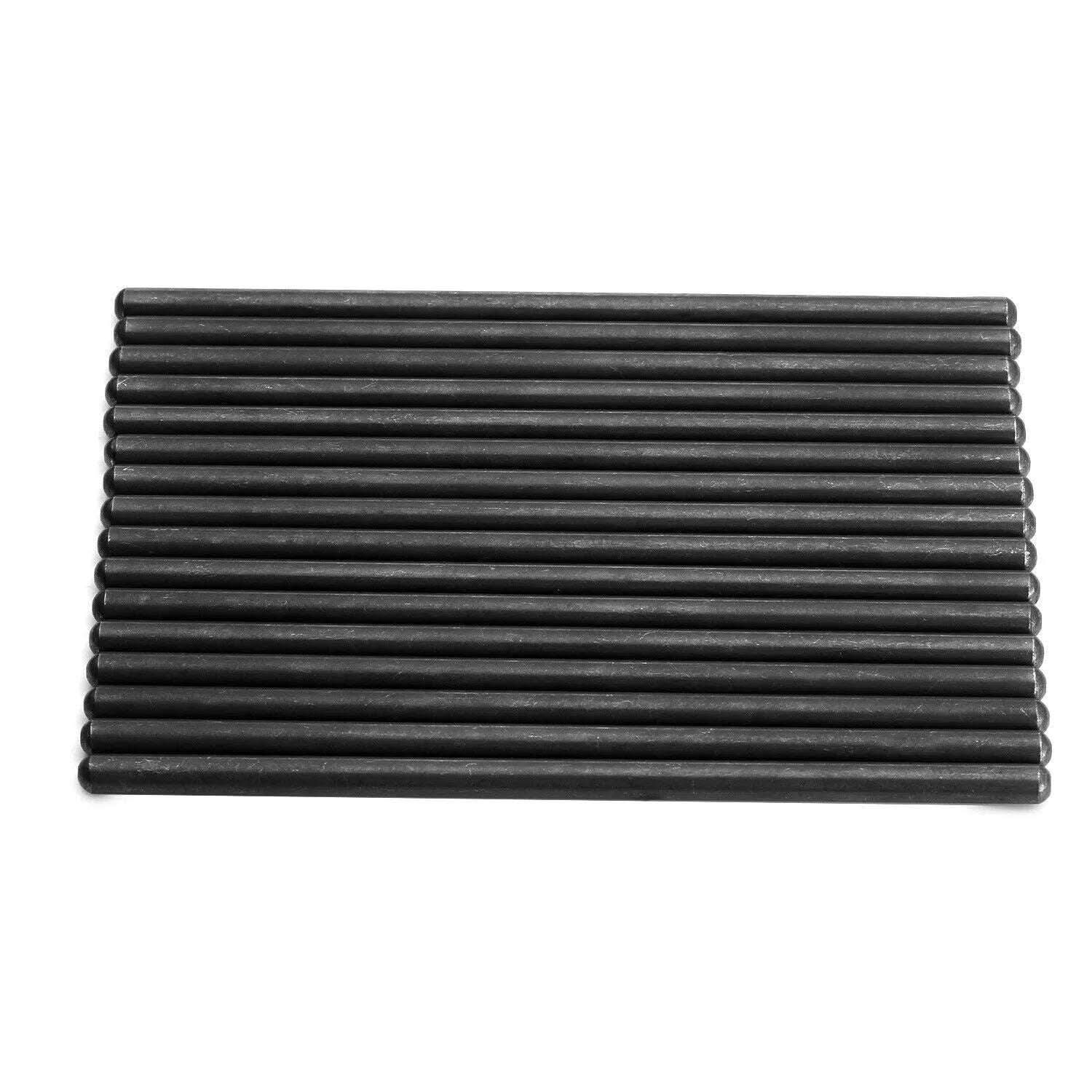

Pushrod Details
Overall Length of 7.400"
Overall Diameter of 5/16"
Wall Thickness .080"
Material 4130 Chrome Moly
LS1 Rocker

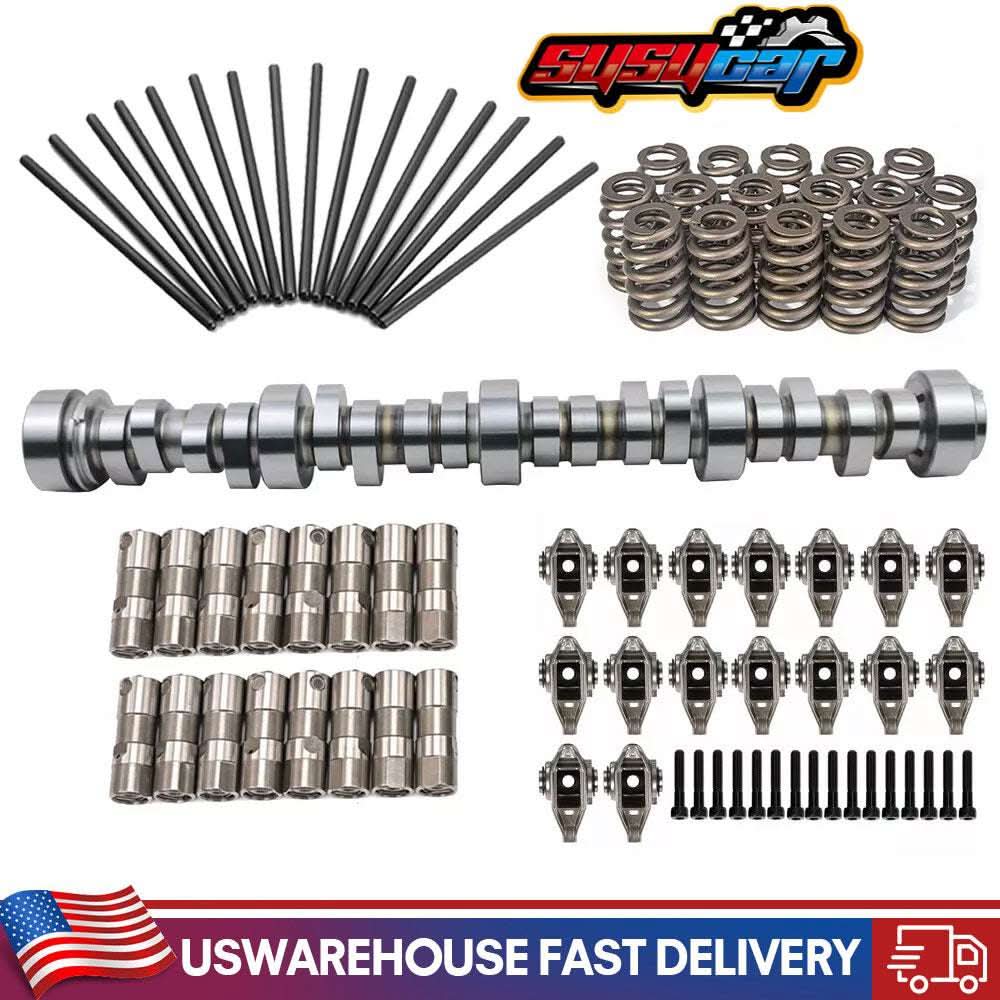

Item Includes

All components shown in the product images are included

• BrandSUSCUAR
• Manufacturer Warranty 1-Year
• Fit For Buick,Cadillac,Chevrolet,GMC
• Year 1999-2007
• TypeCamshaft Kit
• Engine LS-Series
• MaterialSteel/Aluminum/Plastic
• FinishPolished
• Camshaft Type Hydraulic Roller
• Fitment TypeDirect Replacement
