sloppy mechanics stage 2 camshaft kit for chevrolet GMC LS LS1 4.8 5.3 5.7 6.0 6.2

Not sure if this fits?

Send us your Year, Make, Model and Engine size before ordering.

OEM Numbers

These OEM reference numbers are used for identification and fitment purposes.

⚠️IMPORTANT

Please double-check your vehicle’s year, engine type, and part number before purchasing.
If you're unsure, feel free to contact us for assistance.

Fitments
GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L1997-2007 V8 LSx Sloppy Stage 2

Overview

The LS engine family is arguably the most popular engine family on the planet these days. You’ll find these compact pushrod V8 engines in everything from hot rods and muscle cars to classic trucks and more! Their swapability into just about anything, their simplicity, and large source of original applications means the LS engine family is easy on the project budget and that there are numerous upgrades and performance parts available for them.

Many of the LS engine donor sources are GM truck applications. While performance is solid from the factory, GM’s trucks are designed for work and daily chores like hauling the family. As such, GM engineers designed the LS “Vortec” engine series in these trucks for a long life at relatively low engine rpm with an emphasis on torque. Obviously, these engines will run in your LS swap project as is, but one of the best “bang for the buck” upgrades you can do to your truck LS engine before it lands on those LS swap mounts in your project is an LS cam swap to something with a little more lift and duration. Elgin’s line of Sloppy Mechanics performance LS camshafts is the hot ticket for a Chevy 5.3 cam upgrade, especially if you’re considering additional performance upgrades like gears, high stall torque converter, or even a turbo!

Features

 [Wide Application] -- Compatible with GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L V8 LSx Sloppy Stage 2, and ,5/8" hole on vertical stop compatible with LS Sloppy Stage 2 4.8 5.3 6.0 6.2,585" Lift 286°Duration.
[Intake & Exhaust] - Valve Lift .585"/ .585" (1.7 Rockers); Advertised Duration 283°/ 286° (@ .050" 228°/230°).
[Specifications] - RPM Range 2200 to 5400; Lobe Separation 112°; Intake Center-line 108°; Cam Gear Attachment 3-Bolt.
[Not Require Tuning] - The Hydraulic Roller sloppy stage 2 camshaft is more than OEM Standard, directly replace the old one.

E-1840-P Engine Camshaft for GM Chevy
    Engine Type LS-Series
    Camshaft Type Hydraulic Roller
    Intake Duration @ .050" 228°
    Exhaust Duration @ .050" 230°
    Intake Valve Lift .585"
    Exhaust Valve Lift .585"
    Lobe Separation 112°
    Intake Centerline 108°
    Advertised Intake Duration 283°
    Advertised Exhaust Duration 286°

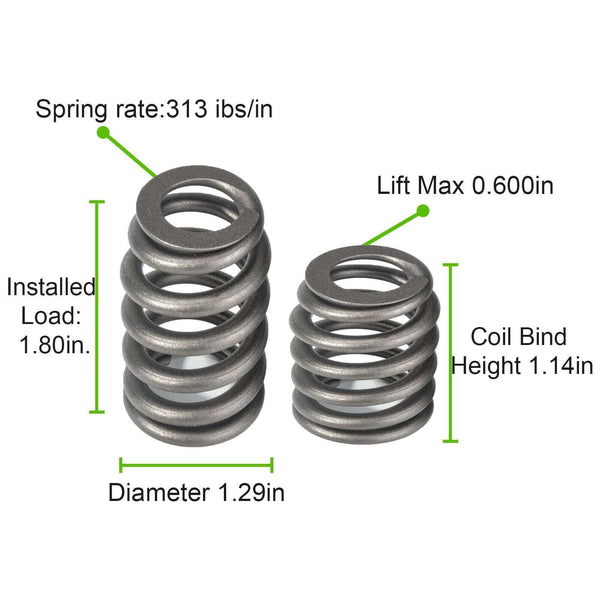

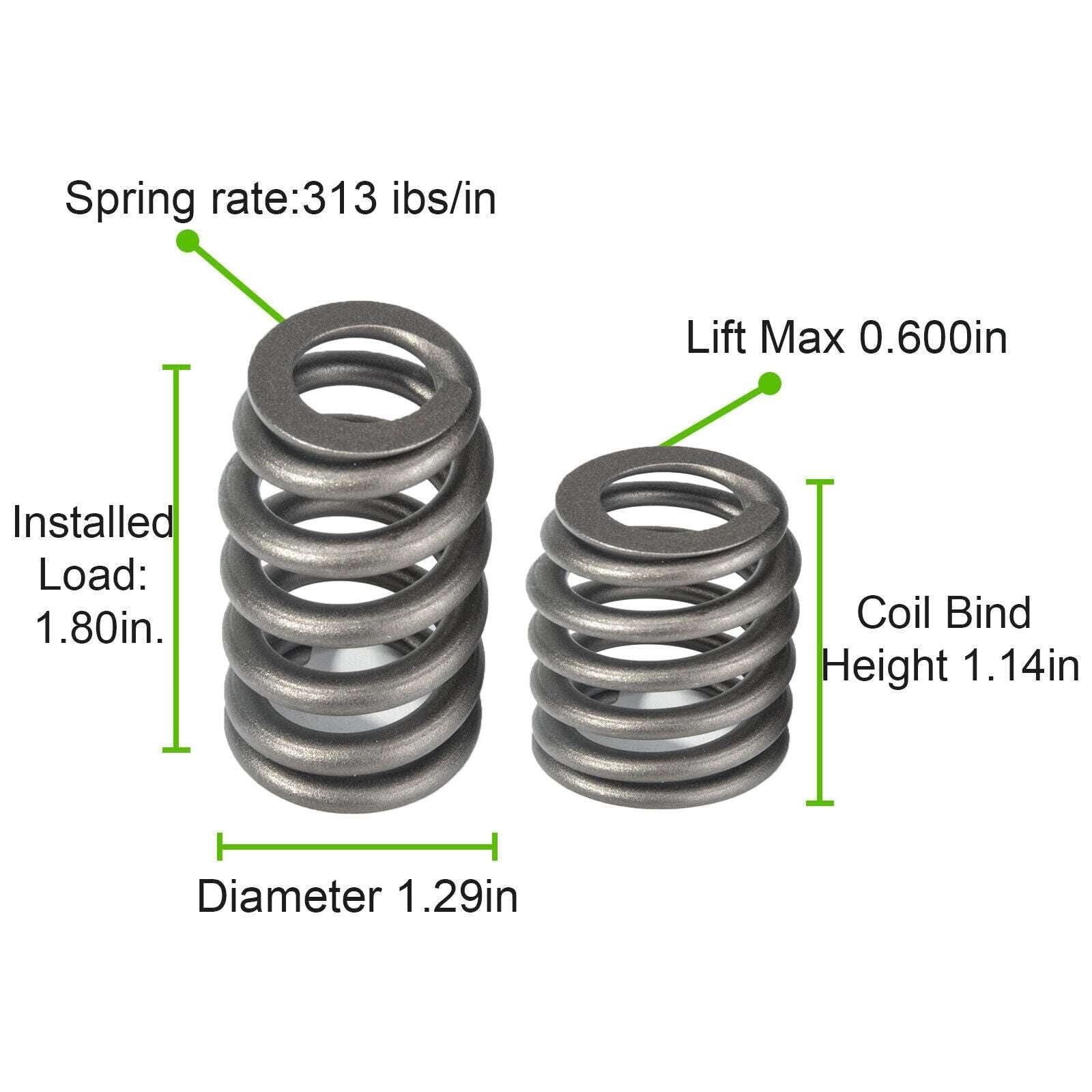

16pcs PAC-1218 Drop-In Valve Springs
    Outside Diameter of Outer Spring (in) 1.290 in.
    Coil Bind Height (in) 1.140 in.
    Damper Spring Included No
    Install Load 130lbs
    Install Height 1.800"
    Open Height 1.175"
    Open Load 318 lbs
    Spring Rate (lbs/in) 313 lbs./in.
    Inside Diameter of Outer Spring (in) 0.885 in.

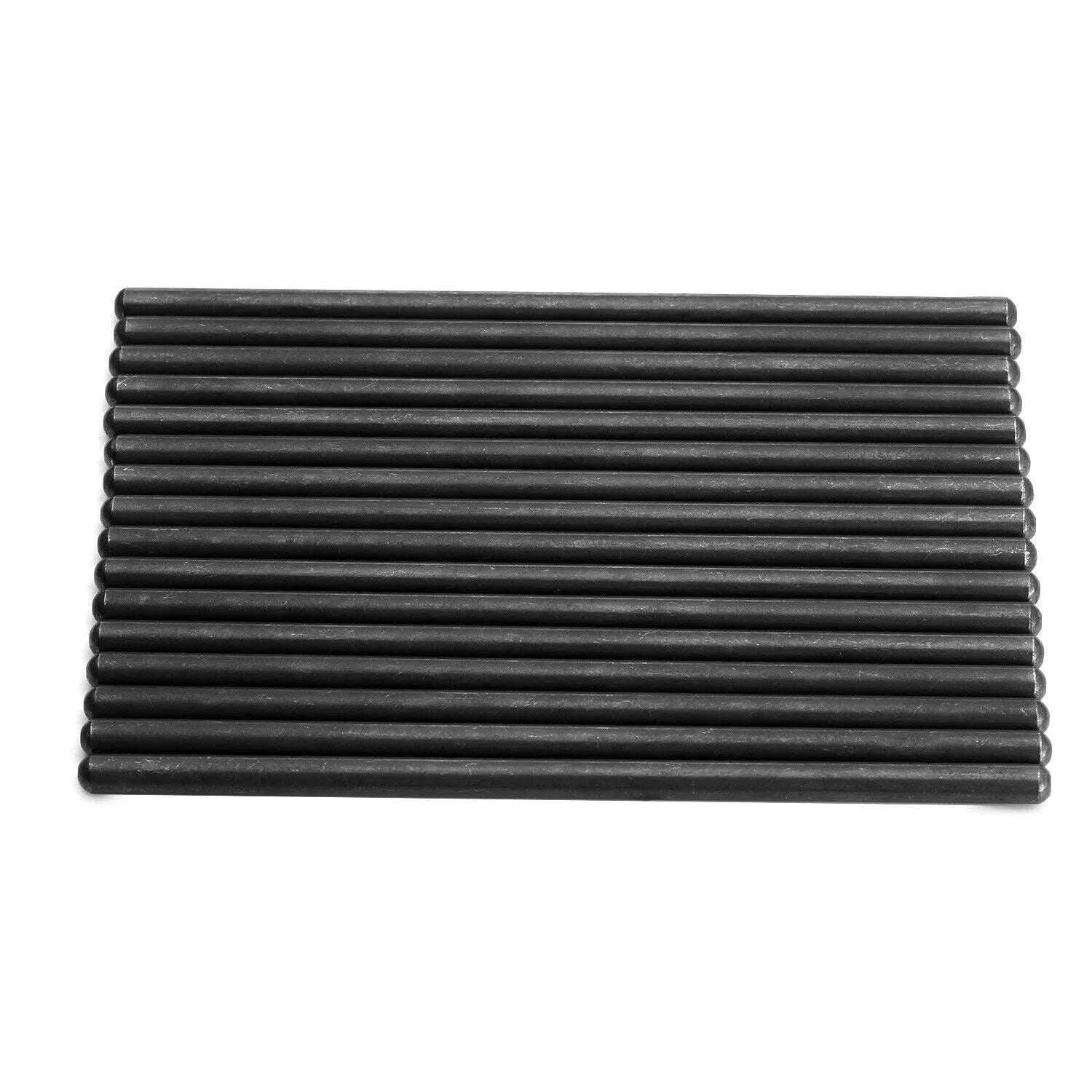

Pushrods
   7.400" Chromoly One Piece Pushrods, 5/16" diameter, and .080" wal

TCS45993 Chevy LS Timing Cover Gaskets
   Chevy LS Engine Timing Cover Gaskets
   Unsurpassed quality you can trust
   Includes gaskets and seals for timing chain and water pump replacement job

Chevrolet Performance Parts 12557840 Harmonic Balancer Bolt
   High quality steel construction
   Hex head style
   16mm x 2.0 thread size
   4.055" underhead length

16pcs 12482063 Viton Valve Seals
   Valve TypeIntake and Exhaust
   EnginesLS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
   Fitment TypeDirect Replacement

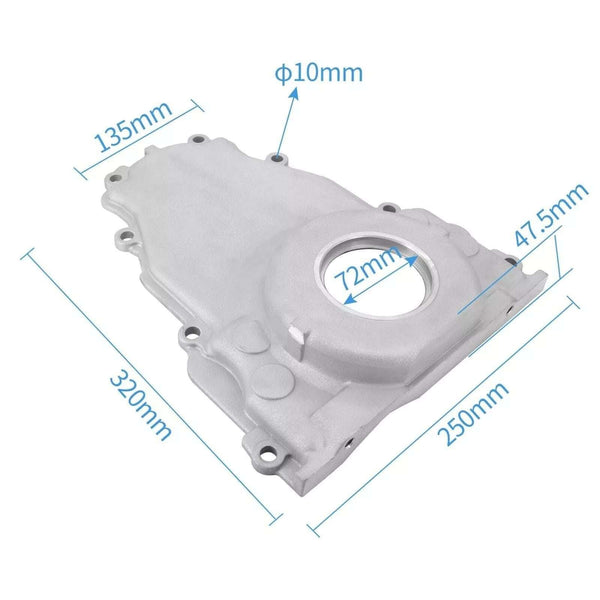

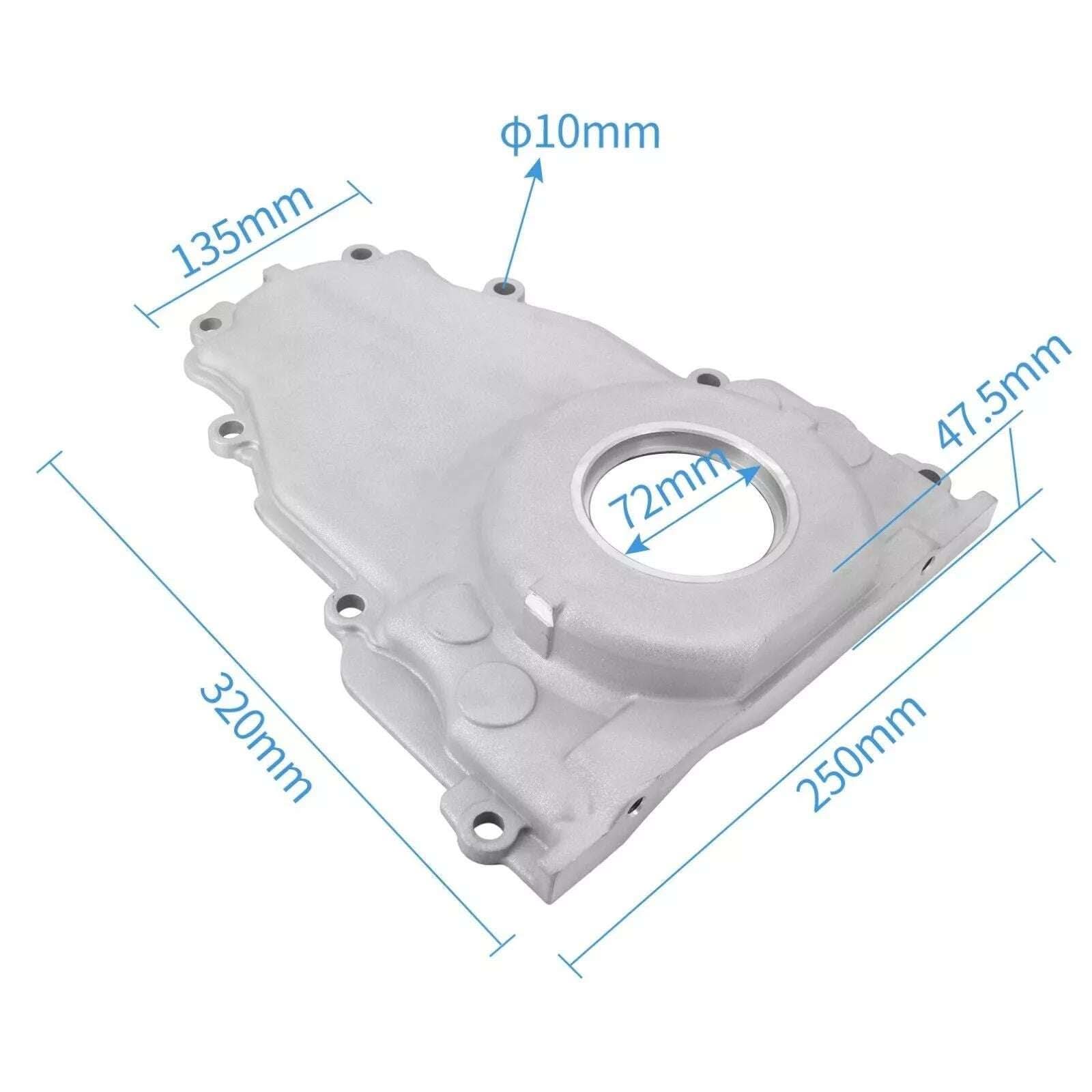

Summit Racing LS1/LS6 Timing Cover
Front Crankshaft Seal
OEM GM Timing Cover Gasket
(Qty 8) OEM GM Timing Cover Bolts

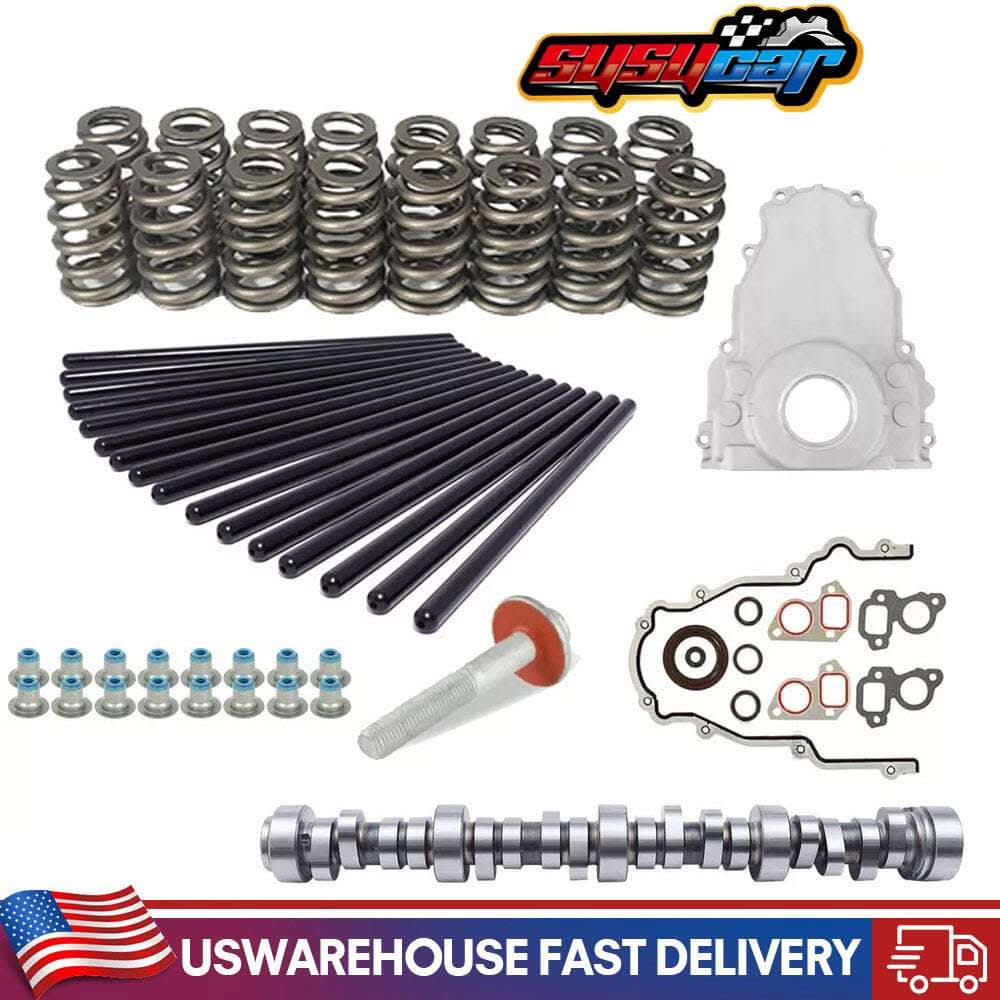

Items Included
1x E1840P Camshaft
16x Matching Springs Set
1 SET OF GASKETS
1x BOLT
16X PUSHRODS
1timing cover

Item Includes

All components shown in the product images are included
